ASPIRE 7.5KW
Main Features
- Built-in MPPT solar charger
- Supports three-phase asynchronous motor
- Built-in full protection and self-diagnosis
- Soft start function prevents water hammer effect and extends system lifecycle
- Comprehensive LEDs and display screen for real-time system status
- Remote monitoring through RS-485
Size Guides
SIZE GUIDE
JEANS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 88 | 89 | 90 | 91 | 92 | 93 |
| WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
| HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
T-SHIRTS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 60 | 62 | 65 | 66 | 68 | 69 |
| WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
| HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Delivery and return
Delivery and return
Shipping Information
Shipping Information
Composition and care
Composition and care
Description

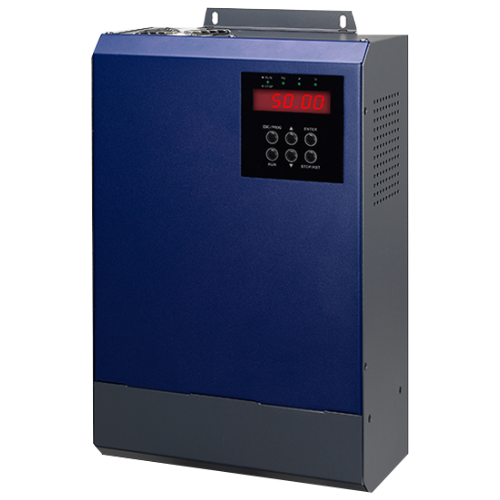

ASPIRE 7.5KW
The 3-phase in, 3-phase out solar pump inverter is environmentally friendly with a long lifetime and lower maintenance costs, built in MPPT to ensure you to get the best output power and optimize the performance of water pump solar Inverter along the day as it starts and stops automatically based on the intensity of solar radiation.
| Model | Aspire 7.5KW |
| PHASE | 3-phase in/ 3-phase out (supports 3~10HP water pump) |
| MAXIMUM PV ARRAY POWER | 7500 W |
| RATED OUTPUT POWER | 7500 W |
| Maximum DC Voltage | 540 VDC / 800 VDC |
| Start-up Voltage | 250 VDC |
| MPPT Voltage Range | 250 VDC ~ 780VDC |
| Nominal Voltage | 3 x 380/400/415/440 VAC |
| Full Protection | Over-voltage, under-voltage, over-current, surge, over-temperature, short circuit protection |
| Dimension, D x W x H (mm) | 110 x 230 x 342 (mm) |
| Net Weight (kgs) | 6 |
