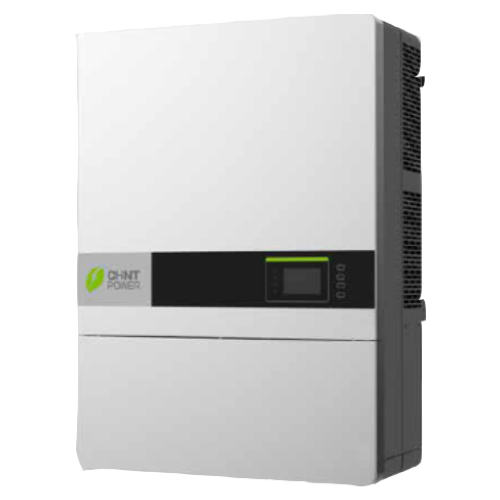

Chint 50kw On-Grid CPS SCA50KTL-T Inverter
Main Features
- Complete Protection
- With advanced high-speed digital signal processing chip
- Integrated DC input string detection
- Integrated DC arc detection input
- Advanced thermal design, fan speed automatic
- Anti-islanding protection
- Leakage current protection and insulation resistance detection
- Mark With a 5-year standard warranty period for DC surge protectors
Size Guides
SIZE GUIDE
JEANS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 88 | 89 | 90 | 91 | 92 | 93 |
| WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
| HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
T-SHIRTS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 60 | 62 | 65 | 66 | 68 | 69 |
| WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
| HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Delivery and return
Delivery and return
Shipping Information
Shipping Information
Composition and care
Composition and care
Description
Chint 50kw On-Grid CPS SCA50KTL-T Three Phase Inverter
Three-Phase string series inverters not only are diversified products providing optional DC switch integrated DC combiner box, option PIID protection module and GPRS/Wi-Fi/RS485 wireless communication, which can match the requirements of different customers, but also support 10% rated overload which can efficiently decrease initial investment of system
SPECIFICATION
| Model | CPS SCA50KTL-T |
| Rated DC Power | 51.5w |
| Max DC Voltage | 1100v |
| MPPT Voltage Range | 200-1000v |
| MPPT Voltage Range (Full Load) | 480-850v |
| Rated DC Voltage | 635V |
| Max AC Power | 50000w |
| Max AC Power | 55000V |
| Max AC Current | 80A |
| Max Efficiency | 98.8% |
| Topology | Transformer-less |
| Display | LED + LCD |
| Protection Degree | IP65 |
| Dimension | 600 x 826 x 260 |
| Weight | 65kg |
