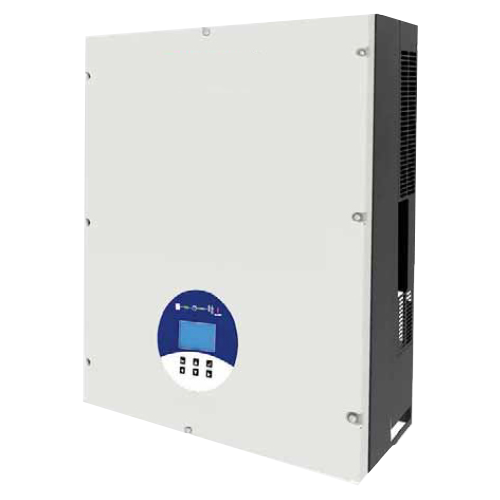

B&B 10kw On-Grid ST10000-TL Inverter
Main Features
- Transformer-less with the three-level topology
- Max efficiency up to 98%
- Dual MPPT Input accommodating wide voltage range
- Compact structure design
- Indoors and outdoors usage (IP65)
- Easy installation and free maintenance
- Reliable Protection for Over/Under voltage, anti, islanding, short circuit, overload, etc
- 5-Year Quality Warrant extends to 15 years(optional)
Size Guides
SIZE GUIDE
JEANS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 88 | 89 | 90 | 91 | 92 | 93 |
| WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
| HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
T-SHIRTS
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| BUST | 60 | 62 | 65 | 66 | 68 | 69 |
| WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
| HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Delivery and return
Delivery and return
Shipping Information
Shipping Information
Composition and care
Composition and care
Description
B&B 10kw On-Grid ST10000-TL Inverter
B&B Power Co, Ltd, established in 1994, is an ISO9001 certified professional corporation specialized in PV Solar Inverters and a subsidiary company if MOSO POWER. Headquarter in Shenzhen China, our company owns a sale and R&D centre in Shenzhen and the service branches covering many countries and regions
SPECIFICATIONS
| Model | ST10000-TL |
| Recommend Max DC Power | 10200W |
| Max DC Voltage | 1000v |
| Full Load MPPT Voltage Range | 300-800v/610v |
| Start up Voltage / On Grid Voltage | 160v/250v |
| Max input Current Per MPPT | 20A/20A |
| AC Nominal Power | 10kw |
| Max Nominal Apparent Power | 10000Va |
| Long-time overload | 10% |
| Ac Volt Range | 176-276V |
| AC Grid frequency | 50Hz – 60Hz |
| Max Output Current | 16A |
| Max Efficiency | 98& |
| Protection Degree | IP65 |
| Weight | 44.5Kg |
| Dimension | 540 x 660 x 192 |
